Assembly Plastic Parts Checking Fixtures(Front Bumper ) Of Ford Vehicle

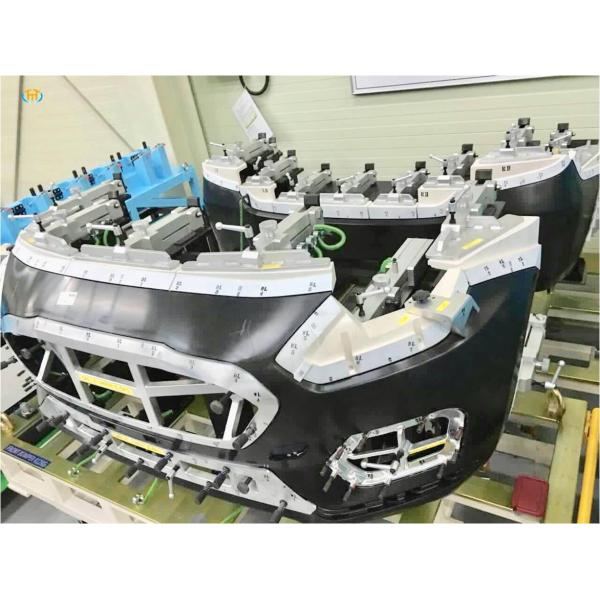

These are two sets of fixtures which are going to be used for checking Front Bumper .
Our engineers are experts when it comes to holding, supporting and locating a part so that you can achieve the repeatability and accuracy needed for an efficient and cost-effective manufacturing process that results in high quality components. Ease of assembly, maintenance, interchangeability and end-user ergonomics are all taken into consideration by TTM when designing checking fixtures.
Specification:
Part Name: Front Bumper
Project Name: Ford
OEM:Volvo
Total Quality: 2 Sets
Weight: 1580 KG
| Items |
| 1 | Base Material | Al |
| 2 | Application | Plastic Parts |
| 3 | Surface treatment | Oxidation/Paint |
| 4 | Processing Precision | 0.15 |
| 5 | Accuracy for Other Profiles | 0.1 |
| 6 | Accuracy for Datum Hole | ±0.05 |
| 7 | Certificate | ISO 9001:2008 |
| 8 | CMM certification | Yes |
| 9 | Software | Catia, UG, CAD, STP |
| 10 | Specification | 1600*1000*900mm |
| 11 | Packing | Wooden Box |
Material
Main Construction: Aluminum
Manufacturing tolerance:
1.The Flatness of Base Plate 0.05/1000
2.The Thickness of Base Plate ±0.03mm
3.The Location Datum ±0.02mm
4.The Surface ±0.1mm
5.The Checking Pins and Holes ±0.1mm
Process
CNC Machining(Milling/Turning), Grinding
Electroplating Chromium Treatment
Quality Control
CMM (3D Coordinate Measuring Machine), Vms-2515G 2D Projector, HR-150 A Hardness Tester
Third Party Certification done by ShenZhen Silver Basis Testing Technology Co., Ltd , ISO17025 Certified
Lead time & Packing
35 days after 3D design approved
7 days via express: FedEx
Standard Export Wooden Case
Primary Competitive Advantages
Pursuit Of Quality Excellence
Multiple Products & Services
Efficiency Consciousness-On-Time Delivery
Cost Consciousness-Innovative Design Solutions To Reduce The Cost
Timely Communication With Our Customer
Compliance With Cooperator’s Terms And Conditions
NDA(Non-disclosure Agreement)
