JMC E315 Project Dismountable Structure Automotive Checking Fixture

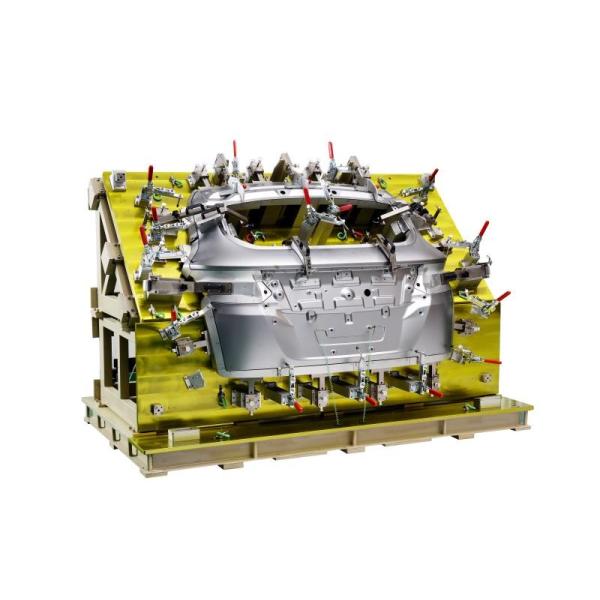

The Auto Trunk Lid Final Fixture that structure is dismountable, so let it can check 1 big simple automotive part .
Below for the Corporate Video of this fixtures , that will let you know the fixture more.
Auto Trunk Lid Final Fixture- Project JMC E315.pdf...
If you also need any kind of fixtures , please feel free contact me any time.
Material
Base Plate and body: Aluminium
Color
Base Plate and Body: Original Color of Metal
The Steel and Aluminum Parts: Original Color of Metal
Our production detail
| Items |
| 1 |
Base Material |
Al |
| 2 |
Application |
Stamping Parts |
| 3 |
Surface treatment |
Oxidation/Paint |
| 4 |
Processing Precision |
0.15 |
| 5 |
Accuracy for Other Profiles |
0.1 |
| 6 |
Accuracy for Datum Hole |
±0.05 |
| 7 |
Certificate |
ISO 9001:2008 |
| 8 |
CMM certification |
Yes |
| 9 |
Software |
Catia, UG, CAD, STP |
| 10 |
Specification |
3600*2200*1930 mm |
| 11 |
Packing |
Wooden Box |
Manufacturing tolerance:
1.The Flatness of Base Plate 0.05/1000
2.The Thickness of Base Plate ±0.03mm
3.The Location Datum ±0.02mm
4.The Surface ±0.1mm
5.The Checking Pins and Holes ±0.1mm
Process
CNC Machining(Milling/Turning), Grinding
Electroplating Chromium Treatment
Quality Control
CMM (3D Coordinate Measuring Machine), Vms-2515G 2D Projector, HR-150 A Hardness Tester
Third Party Certification done by ShenZhen Silver Basis Testing Technology Co., Ltd , ISO17025 Certified
Lead time & Packing
60 days after 3D design approved
7 days via express: FedEx
Standard Export Wooden Case
Primary Competitive Advantages
Pursuit Of Quality Excellence
Multiple Products & Services
Efficiency Consciousness-On-Time Delivery
Cost Consciousness-Innovative Design Solutions To Reduce The Cost
Timely Communication With Our Customer
Compliance With Cooperator’s Terms And Conditions
NDA(Non-disclosure Agreement)
Our purpose is that we can only succeed if our customers succeed.
