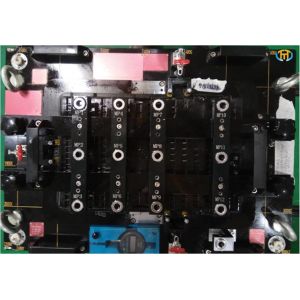

Product Description
Some internal mating surfaces may be checked with fixed or swing templates if directed by the Supplier’s Quality Engineer. Swing templates shall be positioned at centerline of the mating surface.
Other non-mating areas may require checking by fixed or swing templates. The Supplier’s Quality Engineer shall define those areas as required.
Methods of locking swing templates shall be provided.
Feeler spacing shall be 5.00 mm +/- 0.15 mm.
Our production detail
| Items |
| 1 |
Base Material |
Al |
| 2 |
Application |
Stamping Parts |
| 3 |
Surface treatment |
Oxidation/Paint |
| 4 |
Processing Precision |
0.15 |
| 5 |
Accuracy for Other Profiles |
0.1 |
| 6 |
Accuracy for Datum Hole |
±0.05 |
| 7 |
Certificate |
ISO 9001:2008 |
| 8 |
CMM certification |
Yes |
| 9 |
Software |
Catia, UG, CAD, STP |
| 10 |
Specification |
630*390*320 mm |
| 11 |
Packing |
Wooden Box |
Manufacturing tolerance:
1.The Flatness of Base Plate 0.05/1000
2.The Thickness of Base Plate ±0.03mm
3.The Location Datum ±0.02mm
4.The Surface ±0.1mm
5.The Checking Pins and Holes ±0.1mm
Process
CNC Machining(Milling/Turning), Grinding
Quality Control
CMM (3D Coordinate Measuring Machine), Vms-2515G 2D Projector, HR-150 A Hardness Tester
Third Party Certification done by ShenZhen Silver Basis Testing Technology Co., Ltd , ISO17025 Certified
Lead time & Packing
35 days after 3D design approved
7 days via express: FedEx
Standard Export Wooden Case
Primary Competitive Advantages
Pursuit Of Quality Excellence
Multiple Products & Services
Efficiency Consciousness-On-Time Delivery
Cost Consciousness-Innovative Design Solutions To Reduce The Cost
Timely Communication With Our Customer
Compliance With Cooperator’s Terms And Conditions
NDA(Non-disclosure Agreement)
Our purpose is that we can only succeed if our customers succeed.
